Atc 3 Axis Design Furniture Wood Board Cutting Machine Wood Carving Atc 1325 1530 2030 2040
SPECIFICATIONS
Brand Name: NoEnName_Null
Origin: Mainland China
Model Number: AC380V/50HZ
CNC or Not: CNC
Condition: New
Range of Spindle Speed(r.p.m): 1 - 24000 rpm
Positioning Accuracy (mm): 0.01 mm
No. of Spindles: ATC
Working Table Size(mm): 1300*2500
Machine Type: CNC Router
Travel (X Axis)(mm): 1300 mm
Travel (Y Axis)(mm): 2500 mm
Spindle Motor Power(kW): 9kw atc cnc wood machine
Dimension(L*W*H): 1300*2500*200mm atc cnc router or customized
Power (kW): 13252130
Weight (KG): 1800
Warranty: 2 years for atc cnc router machine
Key Selling Points: Sustainable
Machinery Test Report: Provided
Warranty of core components: 2 years
working area: 1300*2500*250mm OR 2100x3000mm cnc machine atc
spindle: 9KW HQD air cooling spindle
table: vacuum table
XYZ Structure: XY-helical rack pinion,Z-ball screw
Inverter: Taiwan Delta Inverter
lubrication system: automatic lubrication system
operating system: LNC control system
Power(W): 9kw air cooling for atc wood cnc router
Application: MDF WOOD ACRYLIC ALUMINUM
Function: Cutting Engraving Carving Milling
Product Description
1325 atc cnc router 1530 2030 2130 3d wood cutting machine woodworking machinery with linear or carousel tool changer
1. With 8 or 12 sets of tools to change automatically, which can saving time of tools changing and improving working efficiency.
2.Vacuum table using high-density material with great suction strength, comfortably accommadating all sizes of work piece.
3.control system is simple, convenient and easy to learn, users can quickly get the fleciblity to master the use of equipment, strong independence.
4.The frame adopts the gantry column structure, the machine parts are produced and assembled with extremely high precision to ensure the high performance and stability of the machine, excellent quality and tolerance.
2.Vacuum table using high-density material with great suction strength, comfortably accommadating all sizes of work piece.
3.control system is simple, convenient and easy to learn, users can quickly get the fleciblity to master the use of equipment, strong independence.
4.The frame adopts the gantry column structure, the machine parts are produced and assembled with extremely high precision to ensure the high performance and stability of the machine, excellent quality and tolerance.
Specification
|
Model
|
1325 atc wood router
|
|
Spindle
|
9kw ATC air cooling spindle
|
|
Working table
|
Vacuum & T-slot table
|
|
Transmission mode
|
Z axis Taiwan TBI screw
|
|
Dynamic system
|
Dorna Servo motor 1.5kw
|
|
Inverter
|
Fuling/Delta Brand
|
|
Control system
|
Taiwan LCN/Syntec
|
|
Filter
|
Prevent electromagnetic interference
|
|
Working area
|
1300*2500*200mm
|
|
Max working speed
|
25m/min
|
|
Max velocity
|
50m/min
|
|
Spindle speed
|
0-18000rmp
|
|
Working voltage
|
AC220/380V
|
|
Interface
|
USB
|
|
Command language
|
G code
|
|
Software environment
|
Type3/Artcut/Artcam/Ucancam
|
|
Running environment
|
Temperature:0-45°C
|

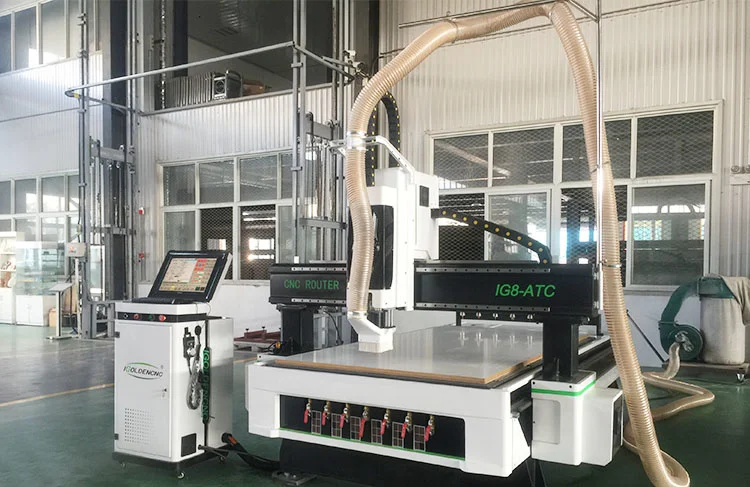

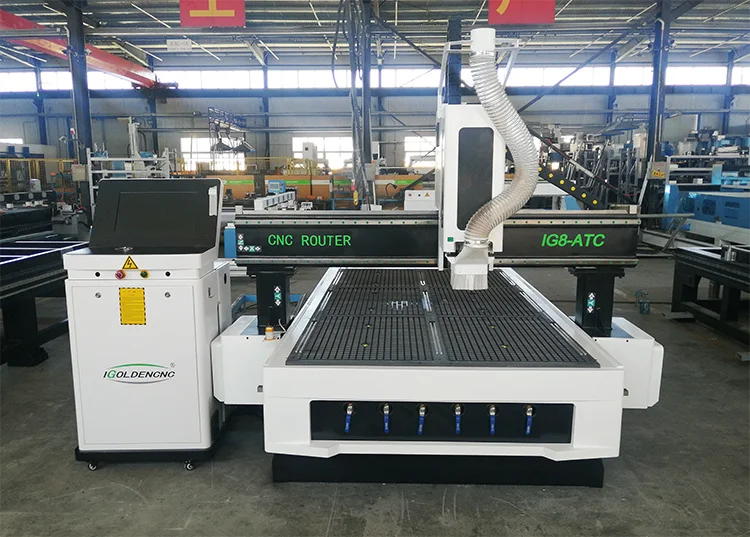

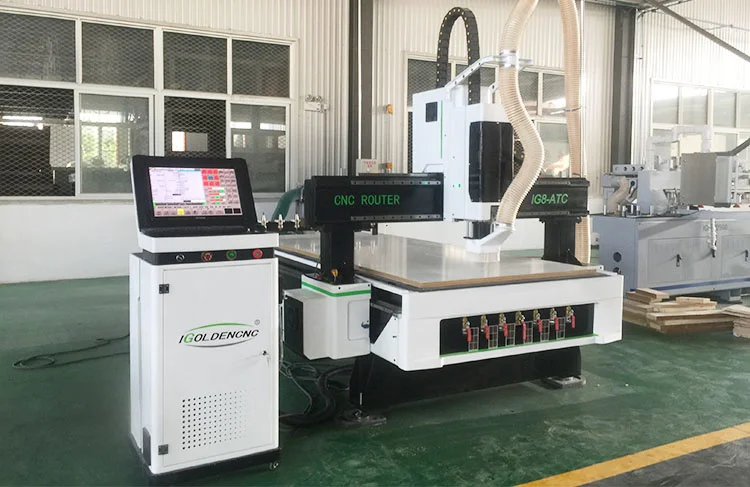

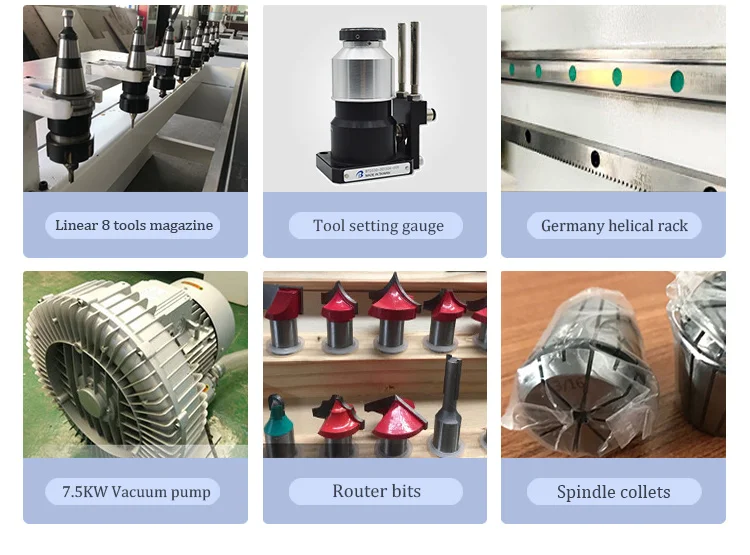

Details Images
Optional
optional 1: atc cnc wood machine with spindle swing
optional 2 : atc cnc wood machine with rotary device
optional 3 : atc cnc wood machine with lift tools
Samples
♦ It mainly used for woodworking industry, door, cabinets, kitchen utensils, chairs, decoration business, mould industry,wood
panel,wave board processing, MDF sheet carving, screen, calligraphy tablet design , relief, wood furniture, computer tables,
panelfurniture, office furniture,instrument industry, and so on.
♦ It can also for advertising signs, acrylic brands, 3D characters, garden or wall decoration, , forming system module,billboard, plate, LED/neon channel, literal-hole cut, blister Light box mold.
panel,wave board processing, MDF sheet carving, screen, calligraphy tablet design , relief, wood furniture, computer tables,
panelfurniture, office furniture,instrument industry, and so on.
♦ It can also for advertising signs, acrylic brands, 3D characters, garden or wall decoration, , forming system module,billboard, plate, LED/neon channel, literal-hole cut, blister Light box mold.
Recommend Products
Manufacturing Technique

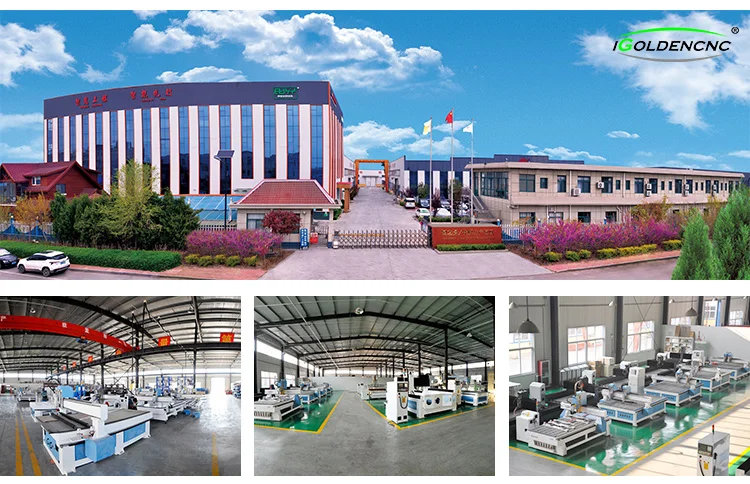

Company Profile
